IEC62368 Pulse Test Generator (Figure D.1)
Product Details:
| Place of Origin: | DONGGUAN |
| Brand Name: | KINGPO |
| Certification: | ISO9001 |
| Model Number: | PMR65 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 80000 |
| Packaging Details: | 500*600*300 |
| Payment Terms: | T/T |
- Description
- Reviews (0)
Description
Detail Information
IEC62368 Pulse Test Generator
,

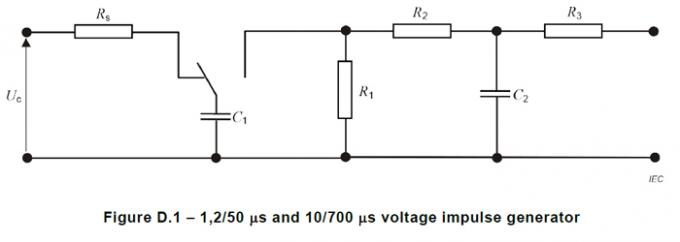

Figure D.1 Pulse Test Generator
,
Pulse Test Generator Equipment
Product Description
1. Product Name: pulse test generator
2. Product model:KP-PRM65
3. Standard basis:IEC62368-1:2018 Appendix D and figure D.1
4. Product introduction:
The pulse test generator is manufactured according to the requirements of Appendix D and figure D.1 of iec62368-1.
5. Standard requirements
| Circuit type | Test pulse | C1 | C2 | R1 | R2 | R3 |
| 1 | 10/700us | 20uF | 0.2uF | 50Ω | 15Ω | 25Ω |
| 2 | 1.2/50us | 1uF | 30nF | 76Ω | 13Ω | 25Ω |
| remarks |
If the same results can be obtained, an alternative test generator can be used. Note: circuit 1 and circuit 2 are based on ITU-T Recommendation K.44 |
|||||
