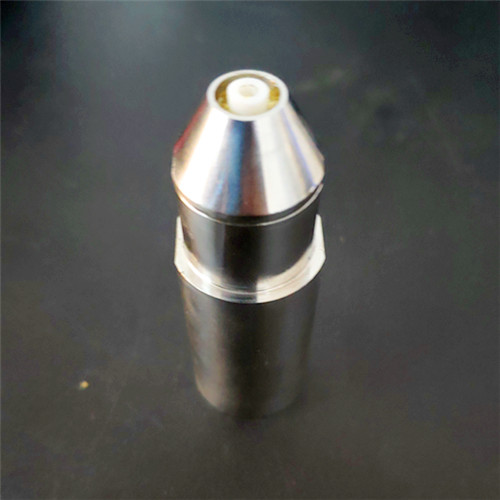

DIN 19523 Figure 1 Ceramic Nozzle For Determination Of Jetting Resistance Of Components Of Drains and Sewers
Product Details:
| Place of Origin: | China |
| Brand Name: | Kingpo |
| Certification: | Calibration Certificate (ISO17025) |
| Model Number: | DIN 19523:2008 -Figure 1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 200 pcs per month |
- Description
- Reviews (0)
Description
Detail Information
rain test equipment
,
salt spray test chamber
Product Description
Requirements and test methods for determination of the jetting resistance of components of drains and sewers

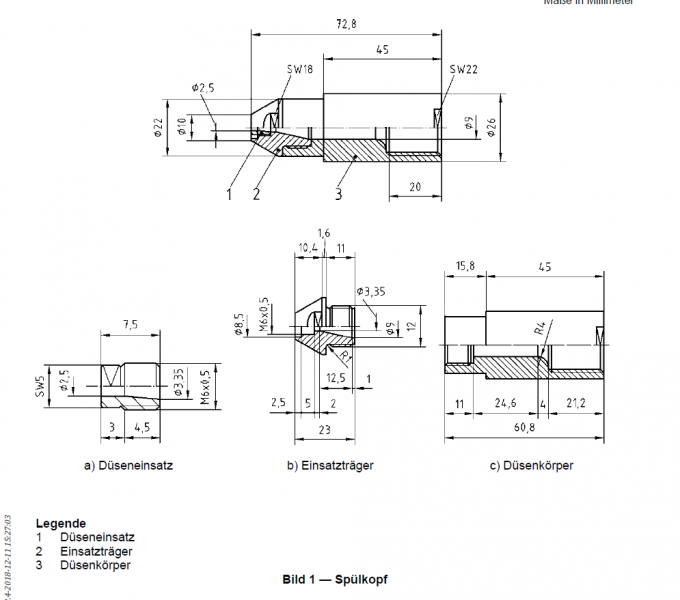

Ceramic Nozzle-DIN 19523:2008 Figure 1
| DIN 19523:2008 | |
| Pressure: | 15 Mpa |
| Flow | 35.7 L/min |
| Gauge | 10[-2,0]mm |
| Angle | 30±1° |
| Speed | 0.2m±0.02m/min |
| Nozzle diameter | φ2.5±0.02mm |
